AV176U
Slim and Fast

The Avision AV176U is designed for desktop use in any office where scanning plastic ID cards, business cards, documents or other heavy card stock is necessary. Despite its small size, the AV176U offers high-speed scanning at rates up to 30 ppm in simplex and 60 ipm in duplex mode.

The Avision AV176U boasts a unique and stylish design as both the input and output paper tray can be folded when not in use. The paper tray also helps to protect the unit from dust. Unlike bulky conventional scanners, the slim AV176U can be easily carried and fit on a desk without taking up a lot of space.

A convenient, programmable button feature allows users to pre-set nine customized functions for different scanning needs. For example, you can create file formats such as PDF, TIFF, JPEG, GIF, and BMP, scan to e-mail, or file documents by simply pressing a button.

Product Details

AV176U, a compact and affordable duplex scanner

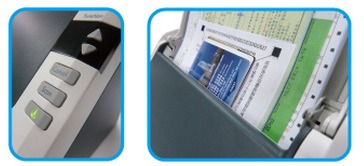

The AV176U is a 30 page-per-minute, 60 image-per-minute, duplex sheetfed scanner that is fast, reliable, and affordable for business where scanning plastic ID cards, business cards, documents or other heavy card stock is necessary. With the straight paper path, the scanner allows thicker paper up to 400 g/m² (110 lbs) and embossed plastic cards such as credit cards, or driver's license up to 1.25mm to be transmitted smoothly. Ultrasonic multi-feed detection assures you that not a single page of your documents will be lost.

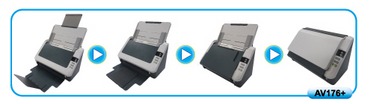

AV176U saves your space when not in use
Both the input and output paper tray of the AV176U can be folded when not in use. This feature not only helps prevent the unit from dust but also save more working space.



Powerful bundled software applications
The AV176U comes with TWAIN and ISIS drivers, and is bundled with a suite of powerful software applications that include Avision Button Manager, AvScan, and PaperPort 14SE. With Button Manager, you can create searchable PDF, scan and send images to e-mail, printer, or other destinations with just a simple press of a button. The AVScan and PaperPort are highly effective image processing and document management software that helps you streamline your task more efficiently.

AV176U Specifications
Technology Contact Image Sensor (CIS)
Light Source LED (Light Emitting Diode)
Optical Resolution 600 dpi
Scanner modes Halftone Patten: Dither and Error Diffusion
Grayscale mode: 16 bits and 8 bits output
Color mode: 48 bits and 24 bits output
Memory Size 64MB SDRAM
Dimension (WxDxH) 11x6.1x6.5 in (282x152x165 mm)
Weight 5.3 lb (2.4 kg)
Interface USB 2.0
Power Source Input: 100-240V, AC, 50/60 Hz
Power Consumption Operation: < 15W
Stanby: < 8W
Power Saving: < 2.9W
Acoustical Noise Operation: < 50 dB
Stanby: < 45 dB
Recommended Daily Volume Up to 3,000 sheets
Features Ultrasonic paper jam detection: Yes
Long Paper Mode: 36 inch
Card Scan: Embossed card (Thickness 1.25mm)
Scan Speed B/W @200dpi, A4: 30 PPM (Simplex); 60 IPM (Duplex)
B/W @300dpi, A4: 20 PPM (Simplex); 40 IPM (Duplex)
Color @200dpi, A4: 30 PPM (Simplex); 60 IPM (Duplex)
Color @300dpi, A4: 20 PPM (Simplex); 40 IPM (Duplex)
Scan Size ADF Minimum: 52x74 mm (2x2.9 in) (A8)
ADF Maximum: 216x356 mm (8.5x14 in) (Legal)
ADF Capacity: 50 sheets
Paper Thickness and Weight: 28g~400g/m² (7~110 lb)
For pricing, please call 510-739-2369.
